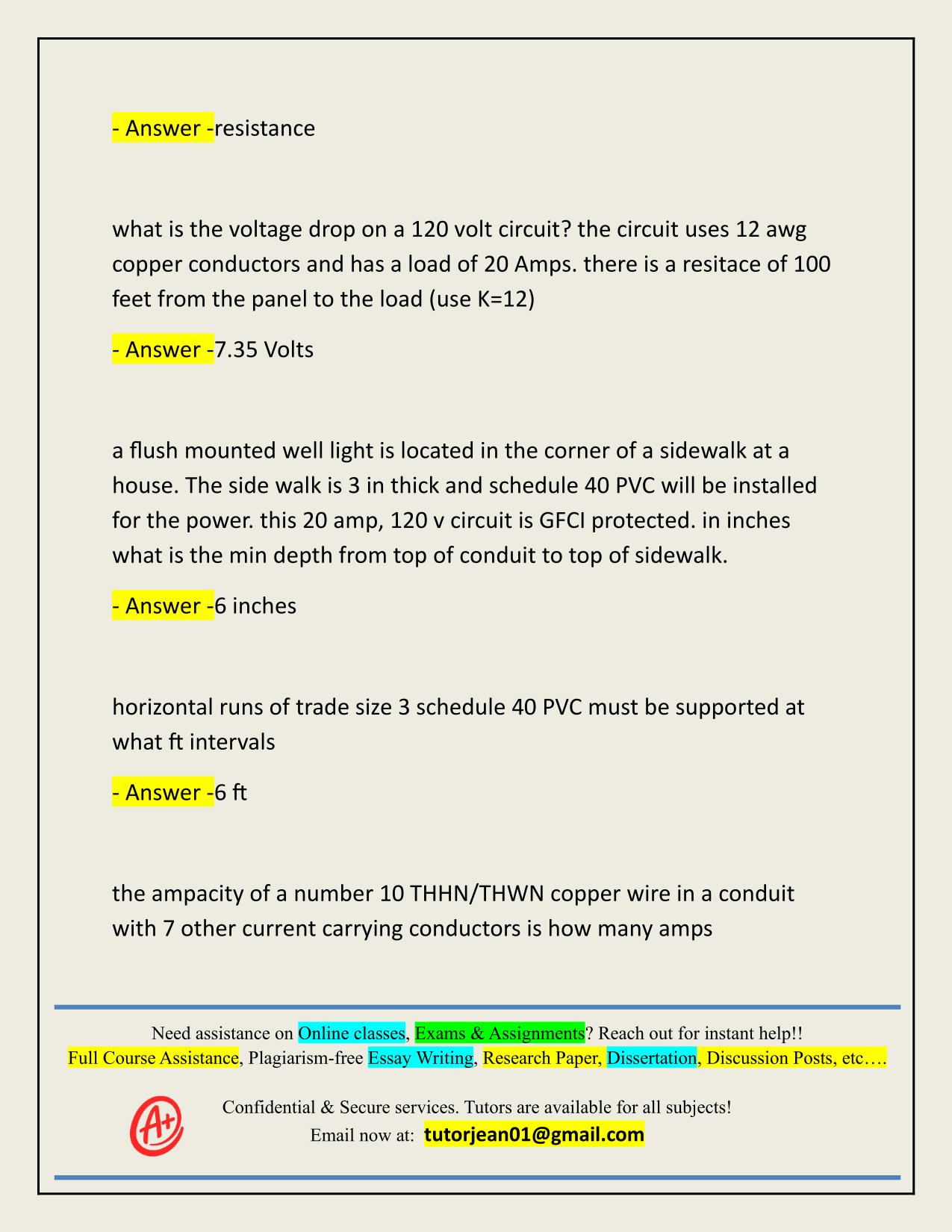

2025/2026 IEC ELECTRICAL FINAL EXAM STUDY GUIDE ACTUAL QUESTIONS AND 100% CORRECT ANSWERS an electrical grounding conductor is permitted to be what color - Answer -Green which of the following types of current travel through a circuit breaker - Answer -short circuit, ground fault, overload explanatory material is represented through the code using - Answer -informational note opposition to current flow is - Answer -resistance what is the voltage drop on a 120 volt circuit? the circuit uses 12 awg copper conductors and has a load of 20 Amps. there is a resitace of 100 feet from the panel to the load (use K=12) - Answer -7.35 Volts a flush mounted well light is located in the corner of a sidewalk at a house. The side walk is 3 in thick and schedule 40 PVC will be installed for the power. this 20 amp, 120 v circuit is GFCI protected. in inches what is the min depth from top of conduit to top of sidewalk. - Answer -6 inches horizontal runs of trade size 3 schedule 40 PVC must be supported at what ft intervals - Answer -6 ft the ampacity of a number 10 THHN/THWN copper wire in a conduit with 7 other current carrying conductors is how many amps Need assistance on Online classes, Exams & Assignments? Reach out for instant help!! Full Course Assistance, Plagiarism-free Essay Writing, Research Paper, Dissertation, Discussion Posts, etc…. Confidential & Secure services. Tutors are available for all subjects! Email now at: tutorjean01@gmail.com
